SMD Diode Basics: Fahimtar Nau'ukan, Lambobi, Ayyuka na thermal, da Gwaji
2026-05-13 154

SMD diodes ƙananan abubuwan haɗin gwiwar semiconductor ne waɗanda ke sarrafa alƙawarin wutar lantarki a cikin da'irori na zamani.Ana amfani da su sosai a cikin na'urori irin su wayoyin hannu, caja masu sauri, tsarin mota, da kayan sadarwa saboda suna goyan bayan ƙaramin tsarin PCB da ingantaccen aiki mai sauri.Nau'o'in diode SMD daban-daban suna yin ayyuka masu mahimmanci ciki har da jujjuya wutar lantarki, ƙayyadaddun wutar lantarki, kariyar karuwa, da sauya sigina.Fahimtar halayen wutar lantarki, aikin zafi, da ƙirar kunshin suna da mahimmanci don gina ingantaccen tsarin lantarki.

Katalogi

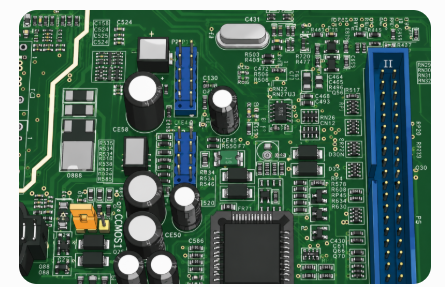

Menene SMD Diode?

Na'urar Dutsen Sama (SMD) diodes ƙananan sassa ne na semiconductor da ake amfani da su don sarrafa alkiblar lantarki a cikin da'irori na zamani.Ba kamar diodes na gargajiya na gargajiya ba, waɗanda ke amfani da jagororin waya da aka saka a cikin allunan da'ira (PCBs), SMD diodes ana hawa kai tsaye a saman PCB ta amfani da Fasaha-Mount Technology (SMT).

A ainihin su, SMD diodes suna aiki kamar bawuloli na lantarki ta hanya ɗaya.Suna ƙyale halin yanzu ya gudana ta hanya ɗaya yayin da suke toshe juzu'in halin yanzu wanda zai iya lalata abubuwan haɗin lantarki masu mahimmanci.

Diodes SMD suna aiki ta hanyar a PN junction semiconductor tsarin, wanda ke sarrafa wutar lantarki a ƙarƙashin yanayin gaba da baya.Dangane da nau'in diode, suna iya aiwatar da ayyuka masu mahimmanci da yawa, gami da gyaran AC-zuwa-DC, ƙa'idar ƙarfin lantarki, kariyar juzu'i, fitarwar lantarki (ESD) kashewa, saurin sigina mai sauri, da sarrafa mitar RF.

Saboda SMD diodes suna amfani da ƙananan fakiti da gajerun hanyoyin lantarki, suna taimakawa haɓaka aikin sauyawa, amincin sigina, da ingancin wutar lantarki gabaɗaya a cikin ƙirar PCB na zamani.

Yadda SMD Diodes ke Aiki da Yadda ake Gane Polarity

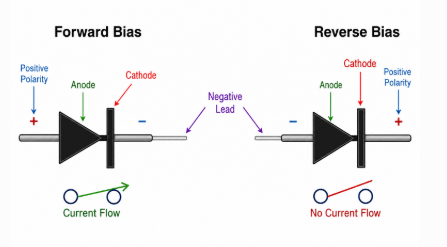

Hoto 2.  Gaba da Juya Bias Ayyuka na Diode yana nuna Halayen Gudun Yanzu

Surface Mount Device (SMD) diodes ƙananan kayan lantarki ne waɗanda aka ɗora kai tsaye a saman allon kewayawa.Kamar diodes na yau da kullun, suna ba da damar wutar lantarki ta gudana ta hanya ɗaya kawai yayin da suke toshe wutar lantarki a kishiyar.Wannan kwararar hanya guda daya tana kare da'irori, tana canza AC zuwa DC, kuma tana sarrafa wutar lantarki a cikin na'urorin lantarki.

SMD diode yana da tashoshi biyu: da anode (+) da kuma cathode (-).Lokacin da anode aka haɗa zuwa a tabbatacce irin ƙarfin lantarki da cathode a mummunan ƙarfin lantarki, diode ya zama gaba-gaba kuma yana ba da damar halin yanzu don wucewa.Idan an haɗa shi a baya, ya zama mai juya baya-baya kuma yana toshe kwararar halin yanzu.

Gano polarity na diode SMD yana da mahimmanci saboda shigarwar da ba daidai ba zai iya hana kewaye aiki ko lalata abubuwan da aka gyara.Yawancin diodes na SMD suna da alamun da ke nuna gefen cathode.

Hanyoyin gama gari don gano polarity sun haɗa da:

• Maɗaukaki ko Alamar Tatsi: Layi ko ɗigon gefe ɗaya yawanci yana yiwa tashar cathode (-) alama.

• Alamomin da aka buga akan PCB: Allolin da'ira sukan nuna alamar diode mai nuna fuskantarwa.

Lambobin fakiti: Wasu diodes na SMD suna amfani da alamomin haruffa waɗanda za'a iya bincika ta amfani da takaddun bayanai.

• Gwajin Diode Multimeter: Multimeter a yanayin diode na iya ƙayyade anode da cathode ta hanyar duba alkiblar yanzu.

Nau'ikan Diodes na SMD gama gari da Amfaninsu

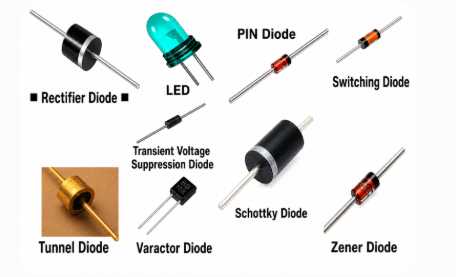

Hoto 3.  Nau'in Diode na gama-gari da ake amfani da su a cikin da'irori na lantarki

SMD diodes suna samuwa a cikin nau'ikan na musamman da yawa, tare da kowane nau'in da aka tsara don yin takamaiman aikin lantarki a cikin da'irori na lantarki.Ayyukansu sun haɗa da gyaran halin yanzu, ƙa'idar ƙarfin lantarki, danne yawan aiki, sauya sigina, gano haske, da kunna RF.

Diodes masu gyara: Rectifier SMD diodes suna canza alternating current (AC) zuwa kai tsaye (DC).Ana amfani da su da yawa a cikin da'irori na juyawa wuta inda ake buƙatar ingantaccen fitarwa na DC.

Schottky Diodes: Schottky SMD diodes an san su don ƙananan ƙarfin wutar lantarki da kuma saurin sauyawa.Ana amfani da su da yawa a cikin da'irar wutar lantarki mai inganci da tsarin lantarki mai saurin sauyawa.

Zener Diodes: Zener SMD diodes suna daidaita ƙarfin lantarki ta hanyar aiki a yanayin rushewar baya.Suna taimakawa daidaita matakan ƙarfin lantarki da kuma kare abubuwan da ke da mahimmanci daga yanayin wuce gona da iri.

Canza Diodes: Canjawar diodes SMD an tsara su don saurin saurin aiki a cikin siginar sigina na dijital da babban mitoci.Lokacin amsawa da sauri yana taimakawa inganta aikin sigina.

TVS (Transient Voltage Suppression) Diodes: TVS SMD diodes suna kare da'irori daga firikwensin ƙarfin lantarki kwatsam, fitarwar lantarki (ESD), da abubuwan da suka faru na wucin gadi waɗanda zasu iya lalata abubuwan haɗin semiconductor.

Haske-Emitting Diodes (LEDs): SMD LEDs suna canza wutar lantarki zuwa haske mai gani don haskakawa, nunin nuni, da tsarin hasken baya.

Photodiodes: Photodiodes suna canza haske mai shigowa zuwa wutar lantarki kuma ana amfani da su akai-akai a cikin tsinkayen gani da tsarin gano haske.

Varactor (Varicap) Diodes: Varactor SMD diodes suna aiki azaman masu sarrafa wutar lantarki waɗanda ke taimakawa daidaita mitar kunnawa a cikin RF da hanyoyin sadarwa.

Tunnel Diodes: Ramin SMD diodes ƙwararrun na'urorin semiconductor ne na ƙwararrun da ake amfani da su a cikin microwave, oscillator, da tsarin RF na ci gaba saboda halayensu masu saurin canzawa.

Kwatancen Kwatancen Manyan Nau'ikan Diode SMD

Siffar	Mai gyarawa	Schottky	Zaner	TVS
Babban Aiki	AC/DC tuba	Saurin ƙarancin hasara sauyawa	Wutar lantarki tsari	Surge kariya
Gaba Wutar lantarki	Mafi girma	Ƙananan	Matsakaici	Ya bambanta
Canjawa Gudu	Matsakaici	Da sauri sosai	Matsakaici	Matukar sauri
Ƙarfi inganci	Matsakaici	Babban	Matsakaici	Kariya-mai da hankali
Juya baya Amfanin Rushewa	A'a	A'a	Ee	Ee
Na kowa Amfanin Masana'antu	Ƙarfi kayayyaki	Caja, SMPS	Wutar lantarki	Motoci, USB

Schottky diodes ana fifita su a manyan da'irori masu sauyawa saboda ƙarancin wutar lantarki na gaba da lokacin dawo da kusan sifili suna taimakawa rage asarar wuta da haɓakar zafi.Halayen canjin su da sauri kuma suna haɓaka inganci a cikin ƙananan tsarin lantarki.

A cikin ƙananan masu juyawa DC-DC, Schottky diodes sau da yawa suna haifar da ƙarancin wutar lantarki fiye da daidaitattun diodes masu gyara saboda ƙananan ƙarfin ƙarfin su na gaba yana rage haɓakar zafi yayin ci gaba da aiki.

Zener diodes ana amfani da su da farko lokacin da ake buƙatar ƙayyadaddun ƙa'idodin ƙarfin lantarki da sarrafa juzu'i mai ƙarfi. TVS diodes, akasin haka, an inganta su don ragewa na wucin gadi da kariya mai sauri daga hawan wutar lantarki da abubuwan ESD.

Daidaitaccen diodes masu gyara sun fi dacewa da jujjuyawar AC-zuwa-DC gabaɗaya inda aikin sauyawa cikin sauri ba shi da mahimmanci.

SMD Diode Alamar Lambobi

Gano diode SMD sau da yawa yana da ƙalubale fiye da gano abubuwan haɗin ramuka na gargajiya.Domin an ƙera diodes ɗin Na'urar Dutsen Surface (SMD) don adana sararin PCB, masana'antun suna bugawa kawai gajere alamomin haruffa akan kunshin maimakon cikakken lambobi.Waɗannan alamun suna iya bayyana azaman a 'yan haruffa, lambobi, ko alamomi wanda ya bambanta tsakanin masana'antun.

Me yasa Diodes SMD ke Amfani da Lambobin Alama

Saboda ƙayyadaddun girman fakiti, diodes na SMD yawanci suna ƙunshe da gajerun masu ganowa maimakon cikakkun lambobin ƙira.Waɗannan alamun na iya nuna:

Jerin na'urori

• Halayen lantarki

• Bayanan tsari na samarwa

• Gane mai masana'anta

• Matsakaicin Polarity

Babu tsarin alamar duniya a duk masana'antun.Misali, lamba kamar A7 na iya wakiltar sassa daban-daban dangane da masana'anta ko nau'in fakiti.Saboda wannan v ariat ion, ya kamata a tabbatar da alamun ta amfani da girman fakiti da bayanan bayanan maimakon dogaro da lambobi masu bugawa kaɗai.

Misalan Lambobin Alamar Diode na gama gari na SMD

1N4148W yana ɗaya daga cikin siginar siginar SMD da aka fi amfani dashi don aikace-aikacen sauyawa mai sauri.Misalai na yau da kullun sun haɗa da T4, A2, da A7, yayin da aikace-aikacen gama gari sun haɗa da sarrafa sigina, da'irar sauyawa mai saurin gudu, mu'amalar dabaru, da da'irar kariya.Saboda masana'antun da yawa suna samar da 1N4148W, lambobin alama na iya bambanta.Girman fakiti galibi suna ba da ƙarin alamun ganowa.

SS14 Schottky Diode

SS14 shine mai gyara shingen shinge na Schottky wanda aka fi sani da ƙarancin wutar lantarki na gaba da saurin sauyawa.Alamomin fakiti na yau da kullun sun haɗa da SS14 da S4.Mahimmin ƙayyadaddun bayanai sun haɗa da ƙimar ƙarfin wutar lantarki na 40V, ƙarfin 1A na gaba na yanzu, da ƙarancin ƙarfin wutan gaba wanda ke inganta inganci kuma yana rage asarar wutar lantarki.Aikace-aikacen gama gari sun haɗa da masu canza DC-DC, kayan wuta, da tsarin cajin baturi.SS14 diodes galibi ana zaɓar don ƙananan da'irar wutar lantarki inda inganci da rage zafi sune mahimman la'akari da ƙira.

BZT52 Zener Diode Series

Iyalin BZT52 sun ƙunshi ƙaramin diodes Zener da aka yi amfani da su don daidaita ƙarfin lantarki da kariya.Alamomi na yau da kullun sun bambanta dangane da ƙimar ƙarfin lantarki, tare da misalan gama gari da suka haɗa da 2A, 5B, da C2.Aikace-aikacen gama gari sun haɗa da da'irorin nunin wutar lantarki, kariyar wuce gona da iri, da kwandishan sigina.Saboda makircin yin alama na iya bambanta da yawa tsakanin masana'antun, ana ba da shawarar tabbatar da sashin ta amfani da takaddun bayanai.

BAT54 Schottky Diode

Jerin BAT54 ya shahara a cikin na'urorin lantarki masu ɗaukar nauyi saboda ƙarancin wutar lantarki na gaba da ƙaramin girman kunshin sa.Misalai na alamar gama gari sun haɗa da KL da L4, yayin da aikace-aikace sun haɗa da na'urori masu ɗaukuwa, da'irar RF, hanyar sigina, da na'urorin lantarki mai sarrafa baturi.

Girman Kunshin Diode na SMD da Zane-zane na thermal

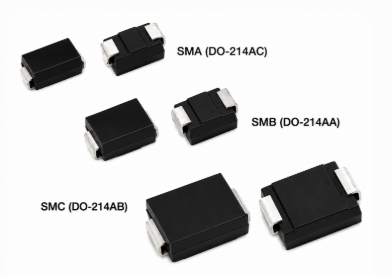

Hoto 4.  Yawan Fakitin Diode SMD na kowa: SMA, SMB, da SMC

Girman fakitin diode SMD kai tsaye yana rinjayar iyawar kulawa na yanzu, ɓarkewar zafi, amincin PCB, kwanciyar hankali na canzawa, da aikin lantarki na dogon lokaci.Zaɓin madaidaicin fakitin ba kawai batun shigar da wani abu bane akan PCB.Girman fakitin kuma muhimmin abu ne a cikin kula da zafi saboda rashin kulawar zafi na iya ƙara yawan zafin jiki, rage aiki, da rage tsawon rayuwar kayan aikin.

Ana zaɓi ƙananan fakitin diode don ƙaƙƙarfan ƙira mai ƙarancin ƙarfi inda sararin PCB ya iyakance.Manyan fakitin sun fi dacewa da manyan aikace-aikacen zamani da wutar lantarki saboda suna samar da ingantaccen aikin zafi da mafi girman iyawar zafi.

Kunshin	Max Yanzu	Ayyukan thermal	Yawan Amfani
SOD-523	Ƙarƙashin Ƙasa	Iyakance	Sigina sauyawa
SOD-323	Ƙananan	Matsakaici	Ƙananan dabaru kewaye
SOD-123	Matsakaici	Mafi kyau	Zener/mai gyara
SMA	Matsakaici-Mai girma	Yayi kyau	Ƙarfi gyarawa
SMB	Babban	Mai ƙarfi	TVS kariya
SMC	Mai Girma	Madalla	Masana'antu iko

Yayin da girman kunshin ke ƙaruwa, wurin da ake da shi don canja wurin zafi shima yana ƙaruwa.Manyan fakiti irin su SMA, SMB, da SMC na iya yaɗa zafi yadda ya kamata a ko'ina cikin wuraren tagulla na PCB, yana ba da damar ƙarin kwanciyar hankali a ƙarƙashin ci gaba da ɗaukar nauyi na yanzu.Ƙananan fakiti irin su SOD-523 da SOD-323 sun mamaye ƙasan sarari na PCB amma gabaɗaya suna da ƙarancin ɓarkewar zafin jiki kuma suna buƙatar ƙarin ƙirar zafi.

Zane-zanen thermal yana ƙara zama mahimmanci a cikin manyan da'irori na yau da kullun saboda zafi mai yawa na iya haɓaka yanayin haɗuwa da haifar da al'amuran dogaro na dogon lokaci.Babban yanayin zafi na aiki na iya rage inganci, haɓaka ɗigogi a halin yanzu, haɓaka tsufa na semiconductor, da haɓaka haɗarin gazawar abubuwan da ba a kai ba.

Tsarin PCB kuma yana rinjayar zafin diode sosai.Zafin da aka samar a cikin mahaɗar semiconductor dole ne ya canza shi da kyau cikin yaduddukan tagulla na PCB.Manyan tagulla da aka haɗa da pads na diode suna taimakawa yada zafi a kan wani yanki mai faɗi da kuma rage wuraren da aka keɓe.A cikin ƙananan shimfidu na PCB, ƙarancin yanki na jan karfe na iya haifar da ma'aunin diode mai kyau don aiki a yanayin zafi mai tsayi.

A cikin ƙira mai ƙarfi mai ƙarfi, ana haɓaka aikin zafi ta hanyar faɗuwar alamun tagulla, manyan jiragen sama na tagulla, tazarar zafi, tsarin PCB mai yawa, da haɓaka kwararar iska.Waɗannan fasahohin suna taimakawa rage zafin haɗin gwiwa da kiyaye yanayin aiki mafi aminci yayin ci gaba da aiki.

Wani muhimmin abin la'akari shine thermal derating.Ana auna ma'aunin bayanan na yanzu a ƙarƙashin yanayin dakin gwaje-gwaje mai sarrafawa, yawanci a kusa da 25°C na yanayi.Ainihin yanayin zafi na aiki na iya yin girma sosai.Yayin da zafin jiki ya tashi, ƙarfin amincin diode na yanzu yana raguwa yayin da zub da jini na yanzu da damuwa na thermal ke ƙaruwa.Zayyana tare da isassun magudanar zafi na taimakawa wajen tabbatar da kwanciyar hankali da dogaro na dogon lokaci.

Zaɓin fakitin diode SMD ya kamata don haka ya ƙunshi fiye da daidaita ƙarfin lantarki da ƙimar halin yanzu.Girman fakiti, juriya na thermal, PCB tagulla, da yanayin aiki duk suna aiki tare don tantance ko diode na iya kiyaye ingantaccen aiki mai aminci yayin yanayin aiki na ainihi.

Maɓalli na Wutar Lantarki don Zaɓin Diode SMD

Siga	Bayani	Muhimmanci
Juya baya Voltage (Vr)	Matsakaicin juyi ƙarfin lantarki	Yana hana rushewa
Gaba Voltage (Vf)	Juyin wutar lantarki a lokacin gudanarwa	Yana shafar inganci da samar da zafi
Leaka Yanzu (IR)	Juya baya zubewar yanzu	Muhimmanci ga ƙananan wutar lantarki
Lokacin farfadowa (trr)	Canjawa saurin dawowa	Muhimmanci ga high-mita aiki
Junction Capacitance (Cj)	Adadin cajin tsakanin tasha	Yana shafar RF da canza aiki
Matsakaicin Yanayin Junction (Tj)	Mafi aminci zafin aiki	Yana hana lalacewar thermal

Zaɓin sigogin lantarki marasa kuskure na iya haifar da zafi mai zafi, aiki mara ƙarfi, asarar wutar lantarki mai yawa, rage ƙarfin aiki, guduwar zafi, da gazawar abubuwan da ba a kai ba.Zaɓin madaidaicin daidaitaccen zaɓi yana taimakawa goyan bayan amincin kewayawa, kwanciyar hankali na zafi, ƙarfin kuzari, da aikin lantarki na dogon lokaci.

Ƙarfin Ƙarfafawa (Vf)

Ƙarfin wutar lantarki na gaba yana ƙayyade adadin ƙarfin lantarki da ke ɓacewa lokacin da halin yanzu ke gudana ta cikin diode yayin aikin son zuciya na gaba.

Nau'in Diode	Yawan Wutar Lantarki na Gaba
Schottky Diode	0.2V-0.4V
Siliki Rectifier Diode	0.7V-1.1V

Ƙarƙashin wutar lantarki na gaba kai tsaye yana inganta ƙarfin wutar lantarki saboda ƙarancin wutar lantarki yana canzawa zuwa zafi yayin gudanarwa.Wannan ya zama mahimmanci musamman a cikin ƙananan kayan lantarki inda sararin sarrafa zafi ya iyakance.

Schottky diodes yawanci ana zaɓar don ingantacciyar da'irar wutar lantarki saboda raguwar juzu'in wutar lantarki da halayen sauyawa cikin sauri.Daidaitaccen masu gyara silicon, duk da haka, na iya samar da ingantacciyar juriyar juriyar wutar lantarki da ƙananan ɗigogi a wasu aikace-aikace.

Ƙarƙashin wutar lantarki na gaba yana taimakawa rage damuwa na zafi, inganta aiki, ƙananan zafin jiki, da kuma tsawaita tsawon rayuwa.

Alakar lalata wutar lantarki:

P=V_f×I

Ko da ƙananan raguwa a cikin wutar lantarki na gaba na iya rage asarar wutar lantarki a cikin manyan na'urorin lantarki na yanzu.

Reverse Voltage (Vr)

Ƙimar jujjuyawar wutar lantarki tana bayyana matsakaicin matsakaicin juzu'in wutar lantarki da diode zai iya jurewa cikin aminci kafin lalacewar wutar lantarki ta faru.Idan wutar lantarki da aka yi amfani da ita ta wuce iyakar ƙididdigewa, diode na iya fuskantar rugujewar dusar ƙanƙara, zub da jini da yawa, lalacewar semiconductor na dindindin, da gazawar PCB yayin hawan wutar lantarki.

Ana zaɓar ma'aunin wutar lantarki mai jujjuyawa yawanci tare da ƙarin tazarar aminci don taimakawa kiyaye aminci yayin yanayin aiki na wucin gadi.Rashin isasshen jujjuyawar wutar lantarki yana ƙara haɗarin matsalolin dogaro na dogon lokaci da gazawar filin da ba a zata ba.

Leakage Yanzu (IR)

Leakage current yana nufin ƙaramin adadin juzu'i wanda ke gudana ta diode lokacin da aka juya baya.Ko da yake yoyon halin yanzu ƙanƙanta ne sosai, ɗigon ruwa fiye da kima na iya rage rayuwar baturi, ƙarancin jiran aiki, ƙara damuwa mai zafi, kuma yana shafar madaidaicin madauri mara ƙarfi.

Leakage halin yanzu gabaɗaya yana ƙaruwa yayin da zafin jiki ya tashi, ƙarfin wutar lantarki yana ƙaruwa, kuma tsufa na semiconductor yana faruwa.Ƙarƙashin aikin ɗigo yana da mahimmanci musamman a cikin na'urorin lantarki mai ɗaukuwa, tsarin sarrafa baturi, na'urorin IoT, da na'urorin jiran aiki masu inganci.

Schottky diodes yawanci suna da ɗigogi mafi girma a halin yanzu fiye da daidaitattun masu gyara silicon, musamman a yanayin zafi mai ƙarfi.

Misali, Schottky diodes yawanci suna ba da ingantaccen inganci a cikin caja masu sauri saboda ƙarancin wutar lantarki na gaba.Koyaya, mafi girman ɗigoginsu na yanzu a yanayin zafi mai ƙarfi na iya ɗan rage ƙarfin jiran aiki a cikin na'urori masu ƙarfin baturi.

Wannan cinikin ya zama mahimmanci a ƙirar lantarki mai ƙarancin ƙarfi inda tsawon rayuwar batir da ƙarancin ƙarfin jiran aiki shine fifiko.

Lokacin farfadowa (trr)

Lokacin dawowa yana auna yadda sauri diode ke daina gudanarwa lokacin juyawa daga son zuciya zuwa juya baya.

Nau'in Diode	Lokacin Farfaɗo Na Musamman
Daidaitawa Mai gyarawa	2µs-30µs
Maida Saurin Farfadowa Diode	50ns-500ns
Schottky Diode	Kusa da sifili

Lokacin farfadowa yana ƙara zama mahimmanci yayin da mitar sauyawa ke ƙaruwa.Madaidaitan diodes masu gyara gabaɗaya ana karɓa don samar da wutar lantarki mai ƙarancin mitoci, amma suna iya haifar da asarar juzu'i mai yawa a cikin da'irori masu girma.

A cikin manyan kayan wutar lantarki mai saurin mitoci, diodes masu gyara sannu a hankali na iya haifar da ƙarin asarar sauyawa saboda juyar da halin yanzu yana ci gaba da gudana a taƙaice yayin sauyawa.Saurin farfadowa da Schottky diodes suna taimakawa rage waɗannan asara, ƙananan samar da zafi, da haɓaka ingantaccen juzu'i.

An fi son murmurewa da sauri da diodes na Schottky a cikin sauya kayan wuta, caja masu sauri, masu sauya DC-DC, da'irar wutar lantarki na RF, da tsarin masana'antu masu yawan mitoci.

Halayen canza canjin su da sauri yana taimakawa rage asarar sauyawa, ƙarancin samar da zafi, haɓaka inganci, rage hayaniyar EMI, da tallafawa mafi kyawun kwanciyar hankali na thermal.

Koyaya, Schottky diodes na iya nuna babban juyi na yanzu a yanayin zafi mai tsayi, wanda dole ne a yi la'akari da shi a cikin mahalli masu buƙatar zafi.

Junction Capacitance (Cj)

Ƙarfin junction yana wakiltar cajin lantarki da aka adana tsakanin tashoshi diode.Wannan siga kai tsaye yana rinjayar saurin sauyawa, aikin RF, amincin sigina, da halayen kewayawa mai tsayi.

Ƙaƙƙarfan ƙarfin junction yana taimakawa inganta saurin mitoci, kwanciyar hankali na siginar RF, aikin da'irar sadarwa, da daidaiton sarrafa sigina.

Ƙarfin haɗin kai ya zama mahimmanci musamman a tsarin sadarwar RF, na'urorin lantarki mara waya, da'irorin sarrafa sigina, da tsarin dijital mai sauri.Ƙarfin ƙarfi mai yawa na iya gabatar da murɗaɗɗen sigina, saurin canzawa, da rage ƙarfin RF.

Matsakaicin Yanayin Junction (Tj)

Matsakaicin zafin mahaɗa, wanda aka saba rubutawa azaman Tj, yana bayyana mafi girman amintaccen zafin aiki na mahaɗin semiconductor na ciki na diode.

Wannan siga yana da mahimmanci musamman saboda diode na iya gazawa koda lokacin da ƙarfin lantarki da ƙimar halin yanzu sun bayyana karɓu idan sarrafa zafin jiki bai isa ba.

Yayin da zafin mahaɗa yana ƙaruwa, diode na iya fuskantar ƙarar ɗigowar halin yanzu, rage ƙarfin aiki, rashin kwanciyar hankali na gaba, haɓakar tsufa na semiconductor, da lalacewa ta dindindin.

A cikin manyan aikace-aikacen diode SMD na yanzu, matsananciyar zafin jiki na iya haifar da guduwar zafi.Wannan yana faruwa a lokacin da hauhawar zafin jiki yana ƙaruwa da ɗigogi a halin yanzu da tarwatsewar wutar lantarki, wanda hakan ke haifar da ƙarin zafi kuma yana ƙara haɓaka yanayin haɗin gwiwa.

Idan ba'a sarrafa yanayin gudu na thermal, diode na iya gazawa ba zato ba tsammani kuma ya lalata abubuwan da ke kewaye da PCB.

Ci gaba da aiki kusa da madaidaicin zafin mahaɗa na iya rage tsawon rayuwar kayan aikin, koda gazawar nan take ba ta faru ba.Ingancin zafin jiki yana haɓaka hanyoyin lalacewa na semiconductor kuma yana rage dogaro na dogon lokaci.

Ana inganta amincin zafin rana ta hanyar amfani da fakitin diode mafi girma, fiɗaɗɗen alamun tagulla, manyan zub da tagulla na PCB, ta hanyar zafi, mafi kyawun iska, da dabarun lalata na yanzu.

Gudanar da yanayin zafi da ya dace yana taimakawa kiyaye yanayin yanayin mahaɗa mai aminci, inganta dogaro na dogon lokaci, da rage haɗarin gazawar abubuwan da ba a kai ba a cikin tsarin lantarki na zamani.

Misali, takardar bayanan diode na iya ƙididdige matsakaicin zafin mahaɗar 150°C da ƙimar RθJA na 90°C/W.Waɗannan dabi'u suna taimakawa ƙididdigewa ko diode zai iya aiki cikin aminci a ƙarƙashin yanayin zafin yanayi da ake tsammani da kuma yanayin lalata wutar lantarki.

Yadda ake Gwajin Diode SMD tare da Multimeter

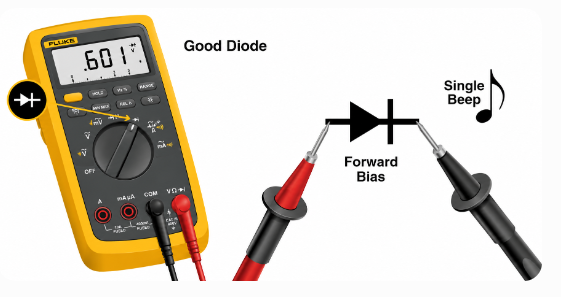

Hoto 5.  Gwajin Diode SMD tare da Multimeter

Gwajin diode SMD tare da a multimeter yana taimakawa gano matsalolin gama gari kamar gajerun da'irori, buɗaɗɗen da'irori, lalatawar ɗigogi, da gazawar zafi.Hanyoyin gwaji da suka dace suna da mahimmanci saboda ma'aunin da ba daidai ba zai iya haifar da rashin daidaiton ganewar asali ko lalata PCB na bazata.

Kariyar Tsaro Kafin Gwaji

Kafin yin kowane ma'aunin diode:

1. Cire haɗin kuma ware wuta daga kewaye

2. Cire capacitors gaba ɗaya kafin taɓa PCB

3. Guji gwada da'irori masu kuzari

4. Yi amfani da kariyar ESD lokacin sarrafa kayan lantarki masu mahimmanci

Manyan capacitors a cikin kayan wuta, caja, da na'urorin lantarki na masana'antu na iya riƙe ƙarfin lantarki mai haɗari koda bayan an cire wuta.Ana fitar da capacitors yana taimakawa rage haɗarin girgiza wutar lantarki da lalacewar ɓangarori na haɗari.

Hakanan ma'aunin kewayawa ba koyaushe cikakke abin dogaro bane saboda abubuwan da ke kewaye da PCB na iya haifar da karatun ƙarya.Masu adawa da juna, capacitors, inductor, da hanyoyin semiconductor na iya shafar ma'auni na multimeter kuma suna haifar da sakamako mai ɓarna.

Don ƙarin ingantacciyar matsala ta matsala, ana yawan ɗaga gefe ɗaya na diode daga PCB don ware ɓangaren yayin gwaji.

Gwajin Bias Na Gaba

Saita multimeter zuwa yanayin gwajin diode.Haɗa binciken ja zuwa anode da binciken baƙar fata zuwa cathode.Diode lafiyayyan yana nuna juzu'in wutar lantarki na gaba na kusan 0.2V-0.4V don Schottky diodes da 0.6V-0.7V don siliki diodes.Waɗannan karatun suna wakiltar raguwar ƙarfin wutar lantarki na diode yayin gudanarwa.Ƙarƙashin wutar lantarki na gaba a cikin Schottky diodes yana taimakawa inganta aiki da kuma rage yawan zafin jiki a cikin manyan da'irori masu sauyawa.

Juya Bias Gwajin

Mayar da binciken multimeter ta hanyar haɗa binciken baƙar fata zuwa anode da jan bincike zuwa cathode.Kyakkyawan diode yakamata ya toshe juzu'i na halin yanzu.Multimeter yawanci yana nuna OL (Buɗe Loop) ko juriya mai tsayi sosai.Idan aunawa halin yanzu yana gudana ta baya-bayan nan, diode na iya fama da lalacewar ɗigogi, rugujewar mahaɗa, ko lalata yanayin zafi.Matsalolin baya-bayan nan sukan zama masu tsanani a yanayin zafi mai ƙarfi.

Manufofin gazawar gama gari

Alama	Dalili mai yiwuwa
0V biyu kwatance	Shorted diode
OL duka kwatance	Bude diode
Rashin kwanciyar hankali karatu	Thermal lalacewa ko yabo

Shorted diodes yawanci yana faruwa bayan matsanancin ƙarfin lantarki, koma baya abubuwan da suka faru na polarity, zafi mai tsanani, ko lalacewa.Bude diode gazawar na iya haifar da lalacewa ta hanyar haɗin waya, hawan keke mai zafi da yawa, fashewar inji, ko lahani na masana'anta.Rashin kwanciyar hankali ko m Karatun na iya nuna lalacewar yanayin zafi na ciki, matsalolin ɗigogi na yanzu, fashewar haɗin gwiwar saida, ko ɓarna na wani yanki na semiconductor.

A cikin da'irori masu girma da yawa da samar da wutar lantarki, kuskuren SMD diodes na iya haifar da haɓakar zafi mai wuce kima, ƙarfin fitarwa mara ƙarfi, jujjuya hayaniya, rage ƙarfin caji, da aiki na tsaka-tsaki.

Gwajin multimeter da ya dace yana taimakawa da sauri gano kurakuran diodes kuma yana goyan bayan ingantacciyar matsala a tsarin lantarki na zamani.

Kasawar Diode na SMD gama gari da kurakuran ƙira na PCB

Kodayake SMD diodes an ƙera su don ingantaccen aiki na dogon lokaci, gazawa na iya faruwa yayin da ba a inganta ƙirar da'ira, sarrafa zafi, ko tsarin shimfidar PCB da kyau ba.Yawancin al'amurran diode ba su haifar da lahani na masana'antu amma ta matsalolin ƙira irin su matsananciyar wutar lantarki, matsanancin zafi, ƙarancin PCB, fitarwa na lantarki (ESD), da lahani.Waɗannan matsalolin na iya rage aiki, gajarta tsawon rayuwa, da haifar da damuwa na dogon lokaci a cikin tsarin lantarki.

Fahimtar hanyoyin gazawar diode na SMD gama gari da kurakuran ƙira na PCB yana taimakawa gano tushen matsalolin da'ira da goyan bayan ƙirar allo abin dogaro.Yawancin gazawar sun samo asali ne daga rashin isassun tsarin kula da zafi, zaɓin diode mara daidai, ƙarancin wutar lantarki, gurɓataccen yanki, ko yanayin siyarwa mara kyau.Waɗannan abubuwan ƙira na iya shafar aiki a hankali koda kuwa da'irar ta fara bayyana tana aiki daidai.

Kasawar SMD Diode gama gari da Tasirinsu

Kasawa Dalili	Na kowa Alama	Mai yiwuwa Sakamako
Wutar lantarki	Yin zafi fiye da kima	Lalacewar wuce gona da iri
Zafi mai yawa	Alamar ƙonewa	Guduwar thermal
Bayyanar ESD	Asarar kariya ta karuwa	TVS diode lalata
PCB sassauci lalacewa	Aiki na wucin gadi	Fashewar saida gidajen abinci
Siyar da mara kyau	Rashin kwanciyar hankali	Juya yoyo da rashin kwanciyar hankali aiki

Wutar lantarki yana ɗaya daga cikin abubuwan da ke haifar da gazawar diode SMD.Wannan yana faruwa lokacin da diode ke aiki fiye da ƙimar ƙarfin lantarki ko iyakoki na yanzu, yana haifar da haɓakar zafi mai yawa da yuwuwar lalata mahaɗin semiconductor.Ci gaba da damuwa na iya lalata halayen lantarki har abada kuma ya rage dogaro.

Damuwar zafi wani babban al'amari ne, musamman a cikin ƙayyadaddun ƙirar PCB inda ƙayyadaddun yanki na jan ƙarfe ke ƙuntata zafi.Maɗaukakin yanayin yanayin mahaɗar na iya ƙara ɗigon ruwa a halin yanzu, rage aiki, ƙara saurin tsufa, kuma a ƙarshe ya haifar da guduwar zafi.

Lalacewar ESD akai-akai yana rinjayar diodes kariya da ake amfani da su kusa da mu'amalar sadarwa.Maimaita bayyanarwa ga abubuwan da suka faru na wucin gadi na iya raunana ƙarfin kariya na na'urar a hankali kuma ya rage tasirinta akan lokaci.

Kuskuren ƙira na PCB na gama gari waɗanda ke shafar dogaron SMD Diode

Yawancin shimfidar PCB da ayyukan ƙira na iya ƙara haɗarin gazawa da gangan.

Ƙarƙashin mashin zafi na iya iyakance canja wurin zafi daga diode zuwa PCB.Idan wuraren jan ƙarfe sun yi ƙanƙanta, zafi na iya taruwa a kusa da abin kuma ya ɗaga zafin haɗin gwiwa yayin ci gaba da aiki.

Sanya diode TVS mara daidai zai iya rage tasirin kariya.Na'urorin kariya da aka sanya su da nisa daga masu haɗin waje na iya ƙyale ƙwanƙwasawa masu wucewa suyi zurfi cikin da'irar kafin kashewa ya faru.

Yin amfani da jinkirin gyara diodes a cikin da'irori masu sauri na iya gabatar da amo mai canzawa, ƙarar asarar wutar lantarki, rage ƙarfin aiki, da matsalolin kutse na lantarki.Mayar da sauri da kuma diodes na Schottky gabaɗaya sun fi dacewa da ƙira mai-girma.

Rashin isassun jujjuyawar wutar lantarki kuma na iya haifar da matsalolin dogaro.Zaɓin diode ma kusa da ƙarfin ƙarfin aiki da ake tsammani yana barin ɗan jurewa ga ƙawan wutar lantarki ko yanayin aiki na bazata.

Amintaccen aikin diode sau da yawa ya dogara ne akan haɗa ƙirar zafi mai kyau, isassun igiyoyin lantarki, ingantattun shimfidar PCB, ingantacciyar hanyar kariya ta haɓaka, da tsayayyen haɗin siyar.Ƙananan yanke shawara na ƙira na iya haifar da babban tasiri akan aminci da aiki na kewaye na dogon lokaci.

SMD Diodes vs Ta Ramin Diodes

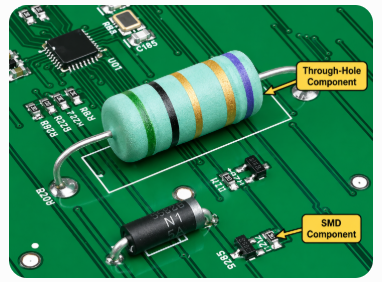

Hoto 6.  SMD vs Abubuwan Ramin-Rami akan PCB

SMD diodes da diodes ta ramuka duka suna yin irin wannan ayyukan lantarki, amma sun bambanta da yawa cikin girman, hanyar masana'anta, halayen zafi, ƙarfin injin, da haɗin PCB.

Siffar	SMD Diodes	Ta hanyar-Rami Diodes
Girman PCB	Karamin	Ya fi girma
Manufacturing	SMT ta atomatik	Manual/kalaman solder
Ayyukan Mai-girma	Mafi kyau	Kasa
Gyarawa	Mai wahala	Mafi sauki
Ragewar thermal	Matsakaici	Mafi kyau ga babban iko
Amfanin gama gari	Mai ɗaukar nauyi kayan lantarki	Tsarin masana'antu

Diodes na SMD gabaɗaya an fi son su a cikin na'urorin lantarki na zamani saboda suna goyan bayan ƙaramin shimfidu na PCB, samar da jama'a ta atomatik, na'urorin lantarki masu nauyi, da ingantattun ayyuka masu girma.

Gajerun hanyoyin su na lantarki suna taimakawa rage ƙarancin inductance da ƙarfin aiki, yana mai da su dacewa da da'irar sauyawa mai sauri, tsarin sadarwa na RF, ƙaramin wutar lantarki, da na'urorin lantarki masu yawa.

Diodes na ramuka, duk da haka, ana iya fifita su a cikin manyan na'urori masu ƙarfi, aikace-aikace masu nauyi na yanzu, ƙaƙƙarfan mahallin inji, da kayan aiki waɗanda ke buƙatar sauƙin gyara ko sauyawa.

Saboda abubuwan da aka haɗa ta cikin rami suna amfani da jagororin waya da aka saka a cikin PCB, galibi suna samar da ingantacciyar injin inji da mafi kyawun sarrafa zafi don manyan na'urorin wuta.

A cikin na'urorin lantarki na zamani, diodes na SMD sun mamaye saboda ƙananan shimfidu na PCB da taron SMT mai sarrafa kansa yana rage farashin masana'anta da haɓaka saurin samarwa.
